Secret of High Cost Performance of GIA G7 Surface Drilling Rigs

2021-05-13


Now, the domestic surface drilling equipment market is booming, with a wide range of products, so how to find the most cost-effective Drilling Rigs suitable for your mines is a problem.
Here is a product with strong technical background and manufacturing strength, which can help you easily cope with extreme severe conditions. You may as well understand that this is GIA's hit product---GIA G7 full hydraulic surface hammer Drilling Rig Machine.

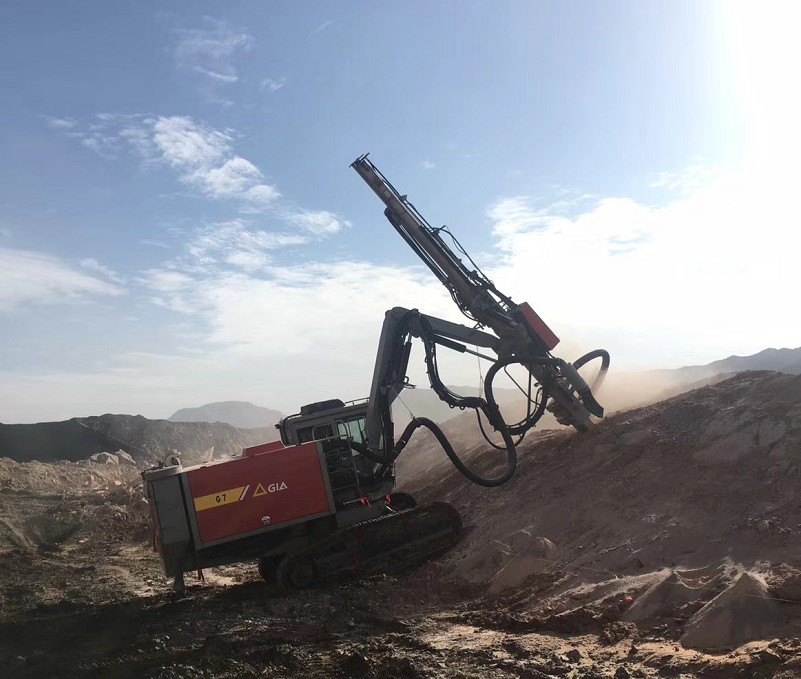

5-GIA G7 top hammer drilling rigs


All named G7 is high-end


This "G7" is not the other "G7". Although it does not refer to the G7 summit, it is also a combination of advanced technology and configuration. With the strong technical background of Sweden Epiroc Rock Drills Aktiebolag (formerly Atlas Copco Group), the advantages of G7 drilling rigs are inherent.

For GIA G7 top hammer hydraulic mine mining drilling rigs, GIA company still adopts the original technical drawings and the original spare parts. Its borehole diameter range is 76-115 mm, which is safe, reliable, efficient and energy-saving.

-High power diesel engine, strong power
-Equipped with Sweden Epiroc Rock Drills Aktiebolag high-power high-pressure rock drill, it has high perforation efficiency
-It can easily cope with the power requirements in high altitude, extremely cold and other harsh working conditions
-It is widely applied in open-air mines and construction engineering, such as earth rock excavation, quarry reclaiming and slope treatment

Excellent Technical Parameters


5-pictures of parameters of GIA G7 top hammer mining drilling rigs



Superb Configuration
Control System

The programmable logic controller system of GIA G7 has the characteristics of high reliability, simple installation, convenient maintenance with powerful function expansion space and easy fault diagnosis.

Safety System

The display screen can monitor and alarm engine oil temperature and pressure, coolant temperature and water level, compressed air discharge temperature and pressure and other data. In addition, it is equipped with battery charging indicator and other safety devices.


5-safety system for GIA G7 top hammer mine mining drilling rigs


Power System
The high-power turbocharged diesel engine of national III standard is adopted to provide enough power reserve for the whole drilling rig, which makes the drilling rig have stronger adaptability to the high altitude, extremely cold and other harsh working conditions.

Screw Air Compressor is equipped to ensure good slag removal effect and improve perforation efficiency.

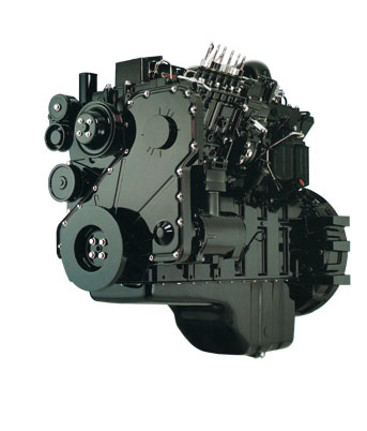

5-power system for GIA G7 top hammer mine mining drilling rigs


RD18S Hydraulic Hammer Drill

Equipped with Sweden Epiroc Rock Drills Aktiebolag (formerly Atlas Copco Group) designed high-power high-pressure hammer drill, it has high perforation efficiency, high and low impact, drilling logic control and automatic anti-sticking function, so as to reduce the wear of the drilling tools and better adapt to different rock conditions.


5-RD18S hydraulic hammer drill for GIA G7 top hammer mine mining drilling rigs

Two-stage Dust Collection System

The two-stage dry dust-collection system can be online self-cleaning, with good dust collection effect, meeting the national dust emission requirements.



Propulsion Beam System
The aluminum alloy beam driven by oil cylinder and steel wire rope has higher strength and better bending resistance, and can achieve ideal drilling straightness. Compared with the chain driven hammer drills, G7 is more stable in drilling.

5-propulsion beam system for GIA G7 top hammer mine mining drilling rigs

Operation Cab

Equipped with high-power air conditioning refrigeration system and heating system, it can work normally in all kinds of bad weather conditions. The handle main control mode makes the operation more simple and convenient, which provides a good working environment for operators and keeps away from dust pollution.


5-operation cab for GIA G7 top hammer mine mining drilling rigs

Chassis System

Crawler type walking chassis, equipped with high-power two-speed hydraulic drive traction system and hydraulic swing adjustment system, and small body width design, makes the rig have excellent off-road performance and mobility.

5-chassis system for GIA G7 top hammer mine mining drilling rigs
